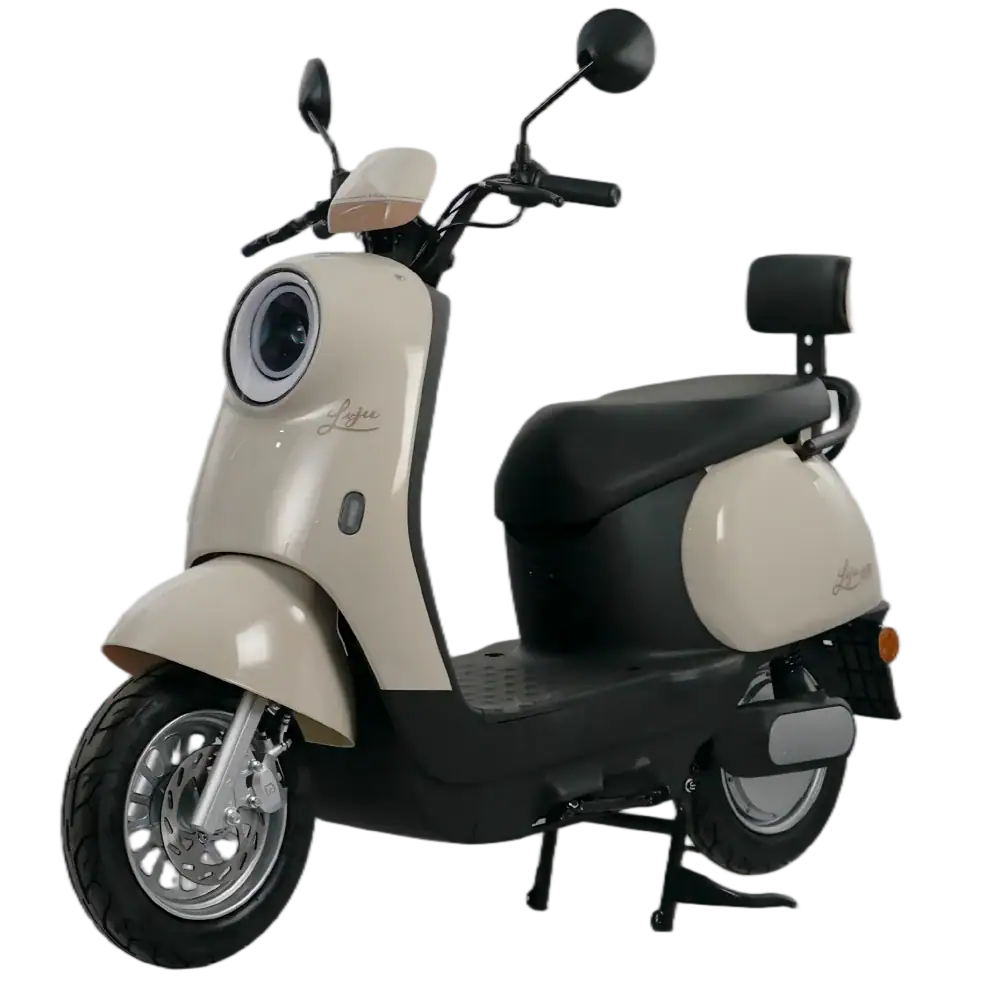

PUFF
Lightweight Powerhouse
Weighs only 54kg but packs a powerful 1000W motor, delivering impressive speed (52 km/h) and 12° hill-climbing capability
Fast 6-Hour Charging
Features a 5A charger that reduces downtime and gets you back on the road quickly
Heavy-Duty Capacity
Supports up to 150kg loads, proving that lightweight design doesn’t compromise on strength
High Ground Clearance
130mm ground clearance combined with hydraulic suspension ensures a smooth ride over bumps and rough roads
| PROJECT | PARAMETER |
| L*W*H/Wheelbase | 1680*645*1060mm/ 1180mm |
| Vehicleweight | 54KG |
| Lead-acid battery | 72V20AH |
| Motor power | 1000W |
| Max climbing | ≥12° |
| Controller | 12Mos |
| Max speed | 52 km/h |
| Max load | 150kg |
| Charger output current | 5A |
| Charging time | 6Hours |
| Range distance | 70km |
| Front&Rear Tire size | F/R:3.00-10 Tubeless |
| Front&Rear Brake | F:Disc brake/R:Drum brake |
| Ground clearance： | 130mm |
| Seat Height： | 740mm |
| Speedometer： | Digital |
| Headlight&Rear lamp： | LED |
| Front&Rear suspension: | Hydraulic/Spring |
| Vehicle status: | Iron hanger backrest |
